Welded Tube 304SS 3mtr

Product code: WELDED-TUBE-304SS-3MTR

Price range: £14.41 through £276.68

Additional information

Tube Size/Wall Thickness

15mm x 0.6mm, 18mm x 0.7mm, 22mm x 0.7mm, 28mm x 0.8mm, 35mm x 1.0mm, 42mm x 1.1mm, 54mm x 1.2mm, 76.1mm x 1.5mm, 88.9mm x 1.5mm, 108mm x 1.5mm

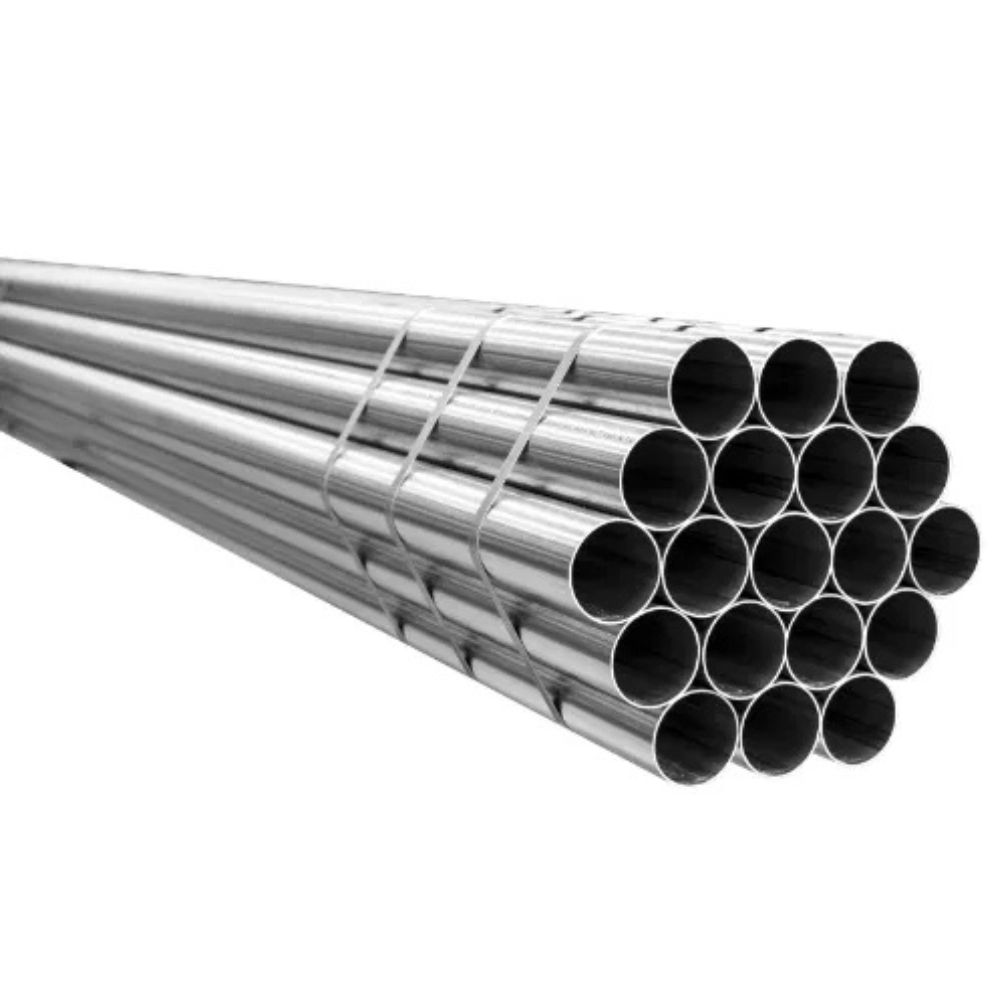

Press Fit Welded Tube 304SS 3m

The Press Fit Welded Tube 304SS 3m carries compressed air between the fittings in your system. Stainless steel press fit fittings are joined to the pipe with a pressing tool, giving fast, flame-free installation of compressed air ring mains.

Features and specifications

  • Range: Press-Fit
  • Tube Size/Wall Thickness: 15mm x 0.6mm, 18mm x 0.7mm, 22mm x 0.7mm, 28mm x 0.8mm, 35mm x 1.0mm, 42mm x 1.1mm, 54mm x 1.2mm, 76.1mm x 1.5mm, 88.9mm x 1.5mm, 108mm x 1.5mm

Typical applications

These products are used to build and extend compressed air ring mains in factories, workshops, garages and warehouses, carrying air from the compressor to drop points, tools and machinery around the site.

Choosing the right air pipe fitting

Size the pipe to the air demand and the length of the run: larger pipe reduces pressure drop. Make sure every fitting matches the pipe outside diameter and comes from the same system, and plan drops from the top of the main to help keep moisture out of the outlets.

Frequently asked questions

Can I mix fittings from different pipe systems?
It is best not to. Pipe and fittings in a ring main system are designed to work together, so use fittings from the same system and in the same pipe size to make sure every joint seals properly.

What options are available for the Press Fit Welded Tube 304SS 3m?
It is available in tube size/wall thickness 15mm x 0.6mm, 18mm x 0.7mm, 22mm x 0.7mm, 28mm x 0.8mm, 35mm x 1.0mm, 42mm x 1.1mm, 54mm x 1.2mm, 76.1mm x 1.5mm, 88.9mm x 1.5mm, 108mm x 1.5mm. Choose your option from the drop-down menus above before adding it to your basket.

Browse our full range of press fit pipework.

Need help or a quote for larger quantities? Contact Simpson Components at sales@simpsoncomponents.co.uk and our team will help you find the right part.
