Skip to content| Tube Size | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm |
|---|---|
| Thread Size | 1/8", 1/4", 3/8", 1/2" |

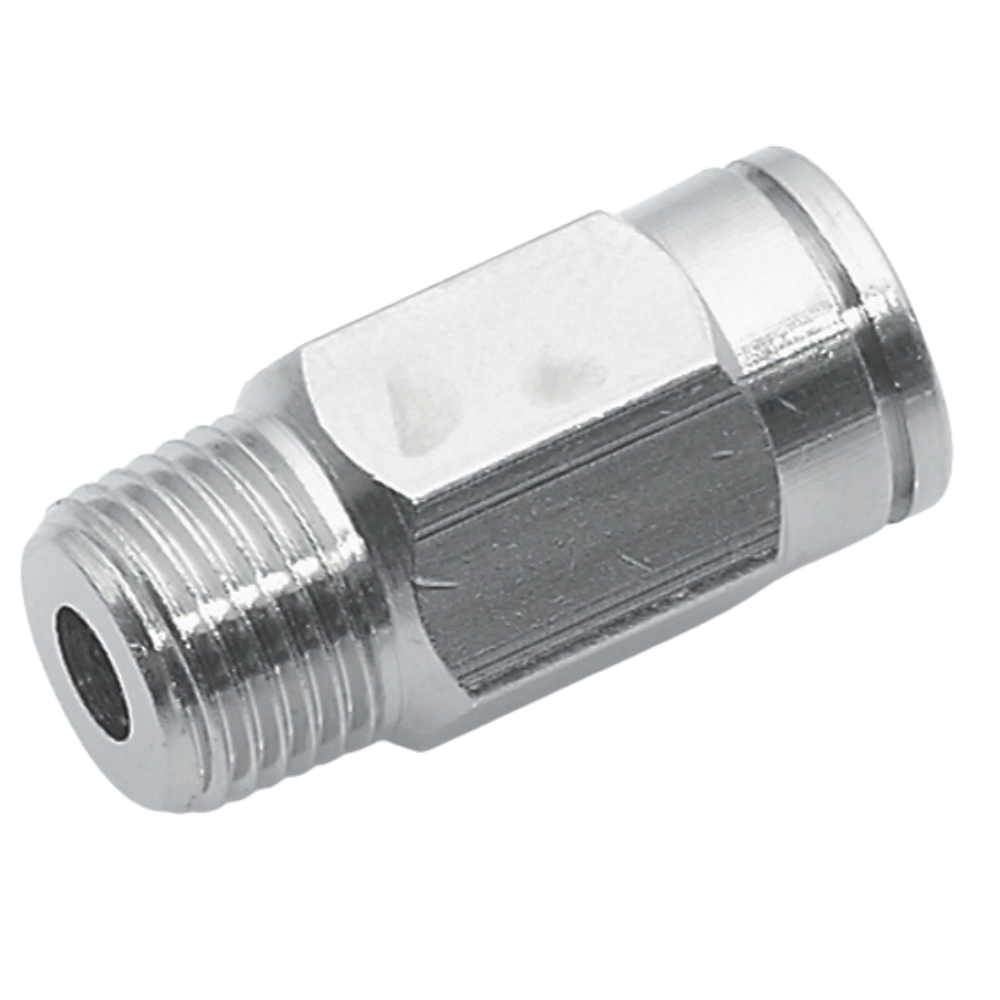

The Nickel Plated Brass Push-In Male Stud Taper connects tube or pipe to a threaded port. All nickel plated brass push-in fittings give a robust metal body for pneumatic lines: push the tube in to connect and press the collet to release.
These fittings are from the IPSO range. Download the IPSO technical sheet (PDF) for dimensions, materials, and pressure and temperature ratings.
Push-in fittings are used throughout pneumatic systems: on cylinders, valves, air preparation units, manifolds and machine control panels. They suit factory automation, packaging lines, assembly equipment, vehicle and trailer air systems, and any installation where air lines need to be connected, rerouted or replaced quickly.
Match the tube size to the outside diameter of your tube, and use calibrated nylon or polyurethane tube cut square with a proper tube cutter. Where the fitting has a thread, check whether the port is parallel (BSPP) or taper (BSPT): parallel threads seal on a washer or O-ring at the face, taper threads seal on the thread itself. Check the working pressure and temperature of both the fitting and the tube for your application.
How do I release the tube from a push-in fitting?
Make sure the line is depressurised, then press the release collet evenly towards the fitting body and pull the tube out. Before re-inserting, trim the tube end square so it seals properly.
What options are available for the Nickel Plated Brass Push-In Male Stud Taper?
It is available in tube size 4mm, 6mm, 8mm, 10mm, 12mm, 14mm; thread size 1/8", 1/4", 3/8", 1/2". Choose your option from the drop-down menus above before adding it to your basket.
