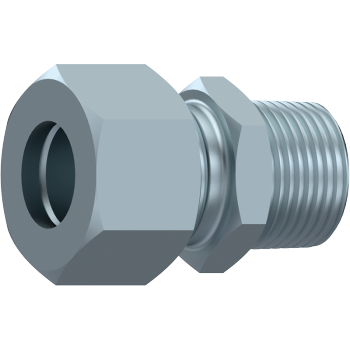

Male Stud Coupling Tapered Thread

Product code: MALE STUD COUPLING TAPERED THREAD

Price range: £2.35 through £22.62

Additional information

Tube OD mm

4, 6, 8, 10, 12, 15, 18, 22, 16, 20

Thread Size BSPT

1/8", 1/4", 3/8", 1/2", 3/4"

Series

Extra Light (LL), Light (L), Heavy (S)

DIN 2353 Male Stud Coupling Tapered Thread

The DIN 2353 Male Stud Coupling Tapered Thread connects tube or pipe to a threaded port. DIN 2353 (ISO 8434-1) fittings are 24° cone compression fittings that seal onto metric steel tube using a cutting ring and nut.

Features and specifications

  • Range: Hydraulic DIN 2353 Fittings
  • Tube OD mm: 4, 6, 8, 10, 12, 15, 18, 22, 16, 20
  • Thread Size BSPT: 1/8", 1/4", 3/8", 1/2", 3/4"
  • Series: Extra Light (LL), Light (L), Heavy (S)

Typical applications

Compression and rapid fittings are used on air, water, oil and lubrication lines in machinery, workshops and process plant, wherever a secure, re-usable joint on metal or plastic tube is needed.

Choosing the right compression fitting

Choose the fitting by tube outside diameter (and inside diameter for plastic tube where an insert is needed). For threaded ends, confirm whether the port is parallel or taper. When assembling, cut the tube square, deburr it, and tighten the nut to the manufacturer's recommendation. Over-tightening can damage the olive or ferrule.

Frequently asked questions

Can compression fittings be re-used?
In many cases the body and nut can be re-used. The olive or ferrule grips the tube when first tightened and usually stays on the tube, so fit a new one when making a new joint on fresh tube.

What options are available for the DIN 2353 Male Stud Coupling Tapered Thread?
It is available in tube OD 4, 6, 8, 10, 12, 15, 18, 22, 16, 20; thread size BSPT 1/8", 1/4", 3/8", 1/2", 3/4"; series Extra Light (LL), Light (L), Heavy (S). Choose your option from the drop-down menus above before adding it to your basket.

Browse our full range of DIN 2353 fittings.

Need help or a quote for larger quantities? Contact Simpson Components at sales@simpsoncomponents.co.uk and our team will help you find the right part.
